Jan 15 2014 - Lowercase lettering guide for engineering drawings. Letter 05 mm thick uses 2HFHB pencils.
Drafting Lettering Guide For Beginners Uwoodcraft Com
Which fonts are available in the lettering generator.
Lettering engineering drawing. Also it may be added here that Lettering is appropriate and correct words but not printing Printing means. It is not hand written. To write three types of lines thick thin and drafted lines according to the standard.
Height 18 is common 14 for titles etc Upper Lower Case Engineering lettering is commonly upper case CAPITALS. Engineering drawing practice for schools 81 colleges bureau ofindianstandards manak bhavan 9 bahadur shah zafar marg new delhi 110002. The correct shape and size of the object can be visualized from the understanding of not only its views but also from the various types of lines used dimensions notes scale etc.
122 engineering drawing engineering drawing can be defined as a graphical language used by engineers and other technical personnel associated with the engineering profession which fully and clearly defines the. Lettering guides as a valuable accessory for technical drawing. Architects engineers and other professionals use them to write down dimensions and label their professional projects.
Single Stroke Gothic Lettering. Single Stroke Gothic Lettering. Use 18 uppercase single-stroke letters.
LETTERING TECHNIQUE The essential features of lettering on technical drawings are legibility uniformity. The lettering generator allows you to display any text in great fonts. And even that has other ways it can be designated without actually using a lowercase letter on the drawing.
It gives information regarding size and instructions in the form of notes and dimension. Single Stroke Gothic Lettering. 22 and ¾ Inches 916 Inches 5 and ½ Inches White Cartolina glossy 7 Inches 2 Inches.
To write straight incline and curve lines continuously and appropriately. LETTERING TECHNIQUE Writing of titles sub-titles dimensions scales and other details on a drawing. The height of letters and numerals for engineering drawing are generally in the range of 25 35 5 7 10 14 and 20 mm according to the size of drawing.
Lettering noteslettering guidelines handout lettering styles shape of letters order of drawing lines character uniformity spacing. Poor lettering can ruin an otherwise good sketch. 1988 first published march 1989 first reprint december 1990 second reprint september 1992 third reprint october 1998 0 bureauof indianstandards.
Neat legible lettering is used to add dimensions and notes to sketches. In lettering A type the height of the capital letter is divided into 14 parts while in lettering B type it is divided into 10 parts. You can place several words and design them independently.
Y142 says lettering on drawings will always be uppercase unless otherwise required. Practice Engineering Lettering Order and direction of Strokes 27. Engineering lettering is usually drawn with HB or other relatively soft lead.
To write sketches proportionally. 22 and ¾ Inches 14 and ¼ Inches 7 Inches 5 and ½ Inches White Cartolina glossy 7 Inches 2 Inches 58 Inch 28. On a drawing whole of the written information is always in the form of lettering.
Visible LineThick Line 05-06 mm thick uses FHB pencils. Graphical representation of an OBJECT Engineering Drawing Drawing of an object contains all the necessary information 9 required for the constructionfabrication of the object like actual shape accurate sizes manufacturing methods materials to be used etc. Lettering is an important part of engineering drawing.
I take that to mean something like a pin in a connector physically labelled with a lowercase letter that youre depicting on a drawing. Lets see the common practice for engineering drawing lettering. The style of engineering lettering we will use in this course is Single Stroke Gothic Lettering Notice that only capital letters are demonstrated since we will use only capital letters on drawings.
MANZOOR ALI RAHIMOON 2. Table 1 Lettering A dh14. At the end you can print out the result in order to work with it.
Lettering and Dimensioning Practices Engineering drawings are prepared on standard size drawing sheets. Lettering techniques in engineering drawing 1. Lettering guides and drawing templates are indispensable when creating technical drawings.
Lettering Toolnotes
Poster With Lettering And Doodle Genetic Engineering Icons Stock Vector Illustration Of Gene Analysis 189121381

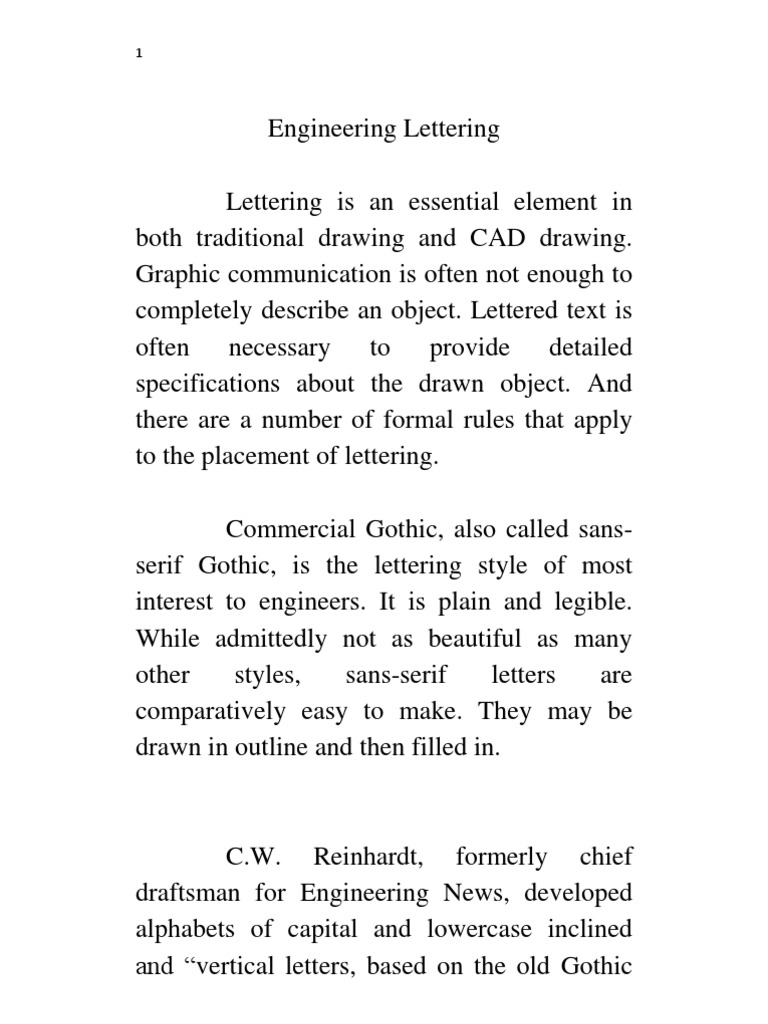

Engineering Drawing Engineering Lettering Lesson 3
Engineering Drawing For Beginners
Gothic Lettering Key Terms Definitions Gothic Lettering Standard Lettering Style Used In Industries Today Gothic Letters Are Made Up Of Lines Ppt Download
Inclined Lettering In Engineering Drawing Google Search Drawing Book Pdf Lettering Engineering
Spacing Between Guidelines
Engineering Drawing Lettering Youtube

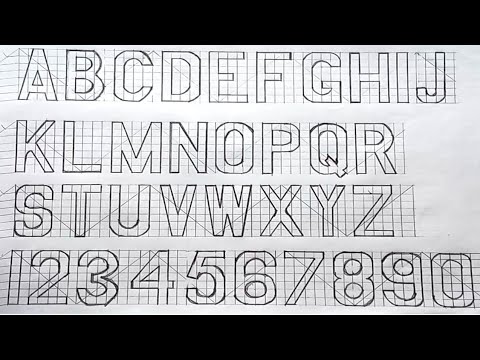

Lettering Single Stroke Vertical Gothic Lettering Engineering Drawing Youtube
Engineering Drawing Thomas E French 1941 6th Ed 1948 Techniques And Lettering Ebay
Layouts And Lettering C H A P T E R T Wo Ppt Video Online Download
Engineering Drawing A Practice Book J R Mehta Ebook Amazon Com
Engineering Drawing Technical Lettering
1
Engineering Drawing Lettering And Lines Presentation 1 Ppt
Engineering Drawings Manufacturinget Org
Which Materials Are Required To Create A Technical Drawing Staedtler
Technical Lettering Engineering Drawing
Frame Technical Vector Photo Free Trial Bigstock
Technical Lettering Drawing
Basic Skills Technology Education
Lettering Toolnotes
Engineering Graphics Dimensioning Methods And General Rules Of Dimensioning Vidyarthiplus V Blog A Blog For Students
Electrical And Electronic Drawing General Drawing Techniques Part 1
Architectural Lettering The Design Build Academy
Lettering Techniques In Engineering Drawing
Lettering Guide Wikipedia
Basics Of Engineering Drawing
Basics Of Engineering Drawing
What Are The Different Lettering Styles 2020 Lettering Daily
Draw10w Engineering Lettering Sans Serif Letter Case
Learning How To Draw For Adults
Basics Of Engineering Drawing
Amazon Com Italics Lettering Template Alphabet Stencil Symbols Technical Drafting And Drawing Letter Size 20 Mm Office Products
Types Of Lettering In Technical Drawing
1
Technical Drawing Fonts At Getdrawings Free Download
Single Stroke Vertical Capitals Letter S For Engineering Drawing By Satyam Singh Youtube

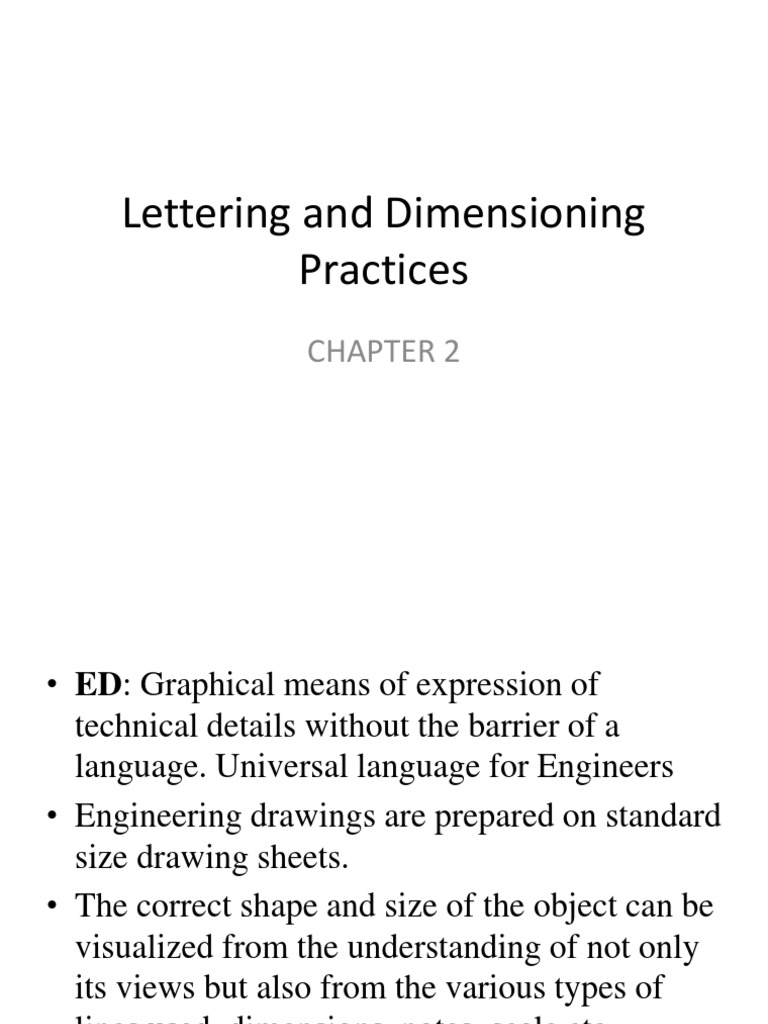

Chapter 2 Lettering And Dimensioning Dimension Drawing
Types Of Lettering In Technical Drawing
Lettering And Lines Presentation Pdf Document
Technical Lettering Lettering Gothic Lettering Hand Lettering
Hand Lettering For Beginners A Guide To Getting Started
Frame Technical Drawing Mechanical Engineering Drawing Stock Vector Royalty Free 1583544514
Engineering Lettering Zomor
Drawing Describing Any Object Information Diagrammatically Engineering Drawing
Engineering Drawing Technical Lettering
Technical Drawing Wikipedia
Civil Engineering Drawing Ppt Video Online Download
Module 1 Part 2 3 Types Of Lines Technical Drawing
Double Stroke Vertical Capital Lettering Hindi Youtube
Ames Lettering Guide How To Use It And Why Calligraphers Love It
Basics Of Engineering Drawing
Lettering And Lines Presentation
Ppt Lettering Powerpoint Presentation Free Download Id 5820773
Technical Drawing Equipment
New York City Vintage Map Maker Typography Lettering Technical Etsy
Http Www Fostercad Com Page 20images 20and 20butons Lettering 20 Custom Jpg Lettering Architectural Lettering Lettering Alphabet
Lettering Guide For Engineering Drawings Lettering Guide Architectural Lettering Engineering Lettering
Technical Lettering Wikiwand

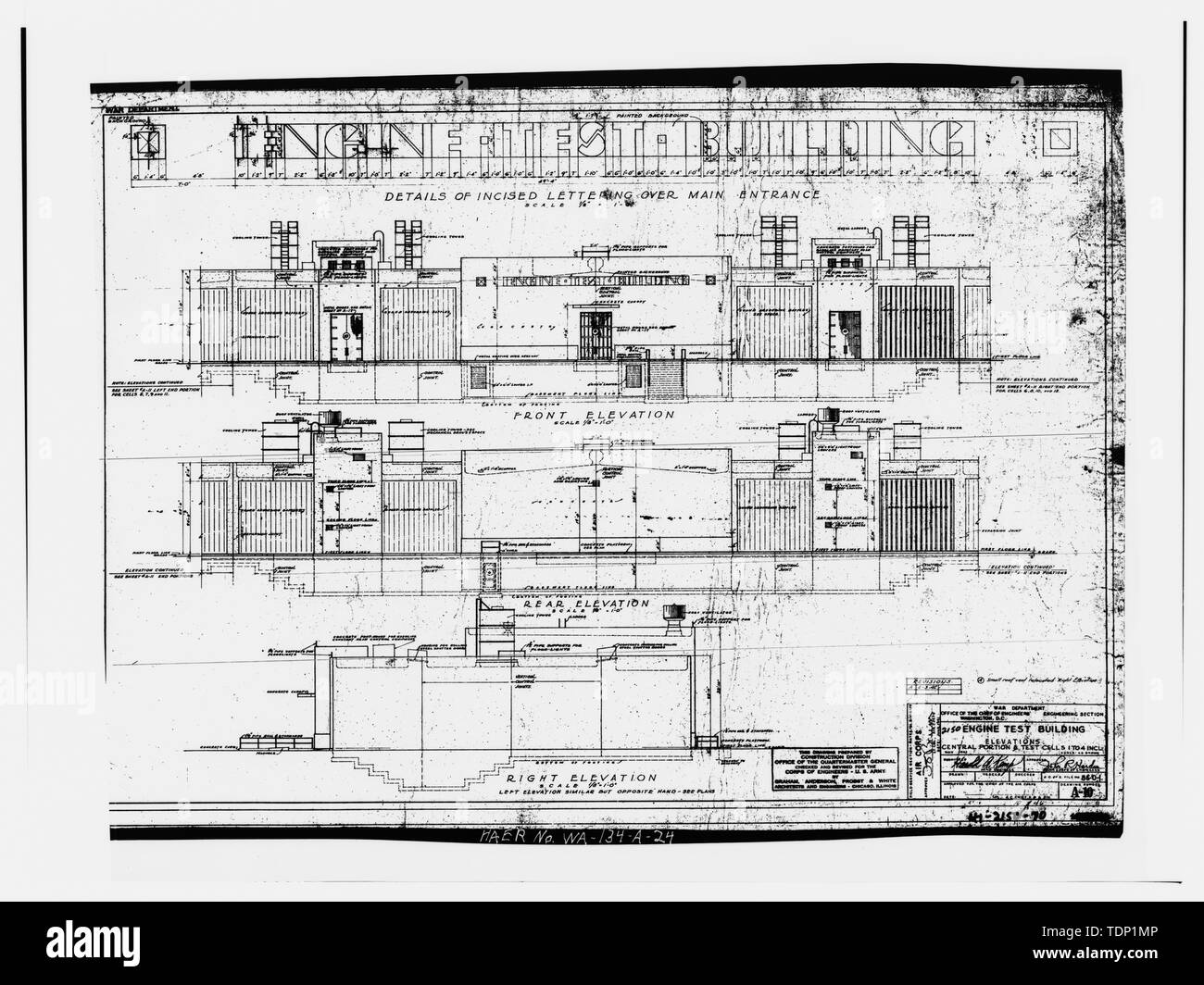

Photocopy Of Engineering Drawing May 1941 Original Drawing Located At Fairchild Air Force Base Civil Engineering Building Civil Engineering Vault Engine Test Cell Building Elevations Central Portion And Test Cells 1 4
